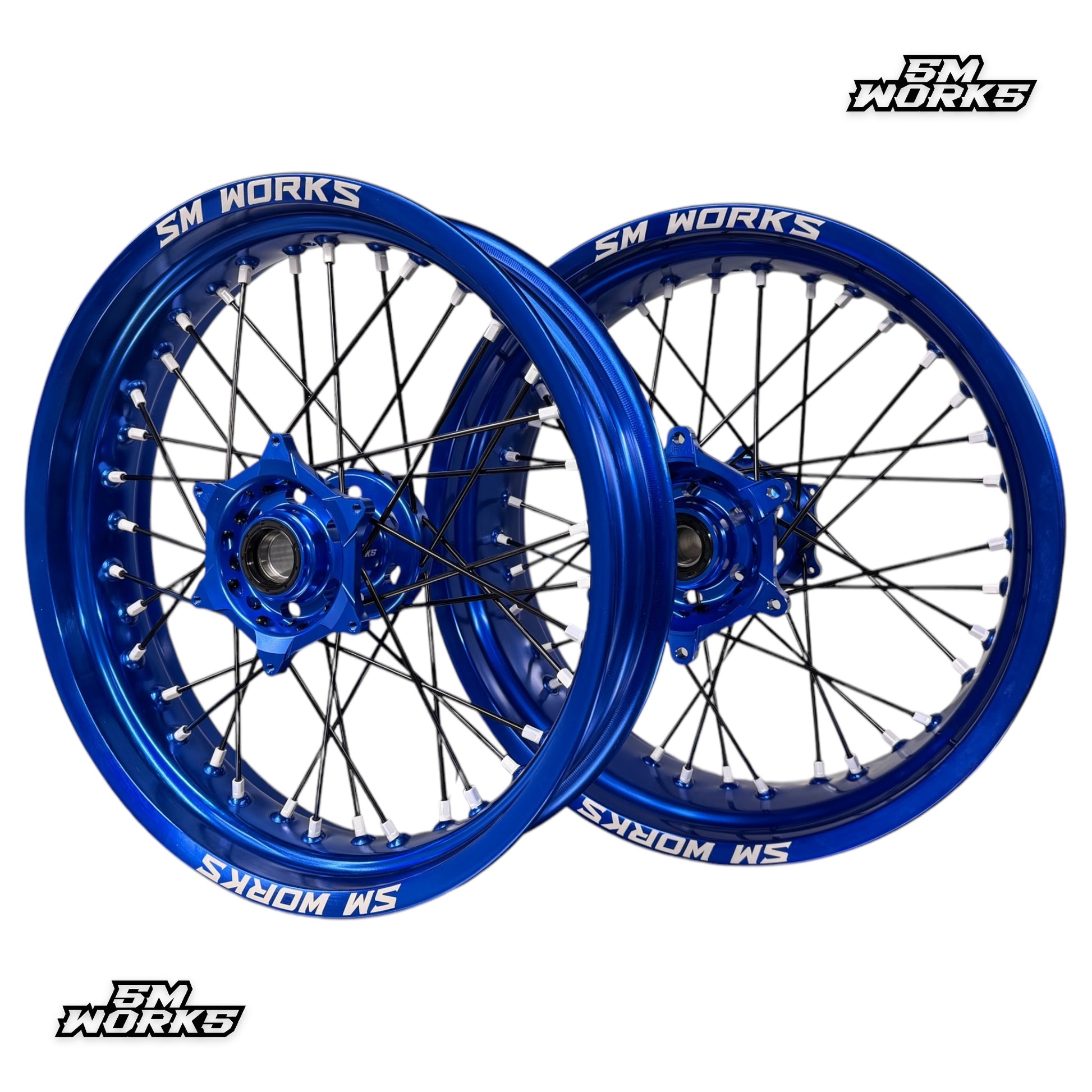

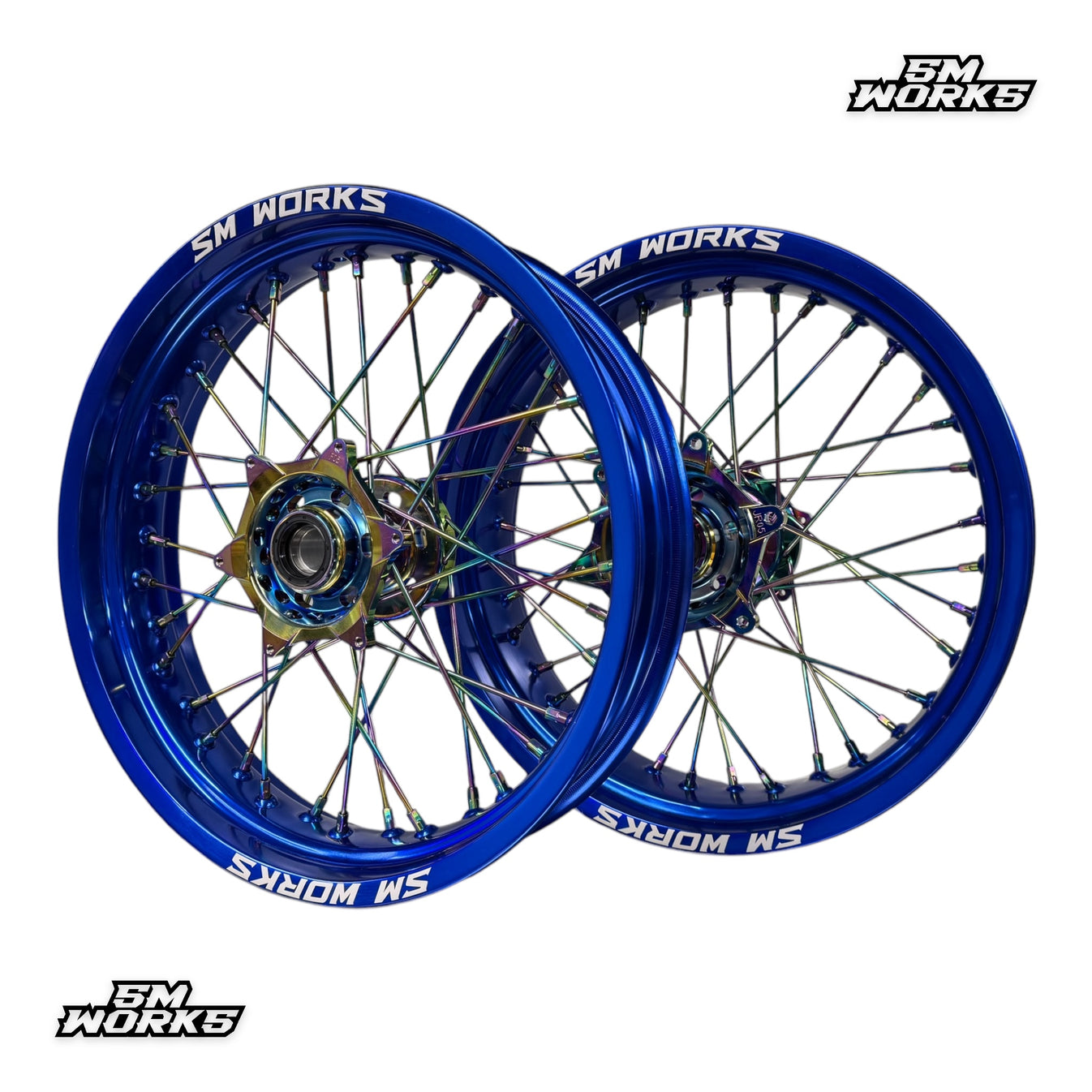

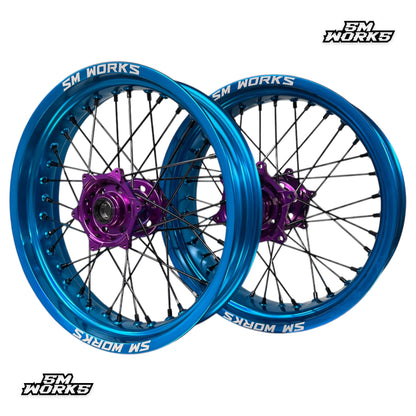

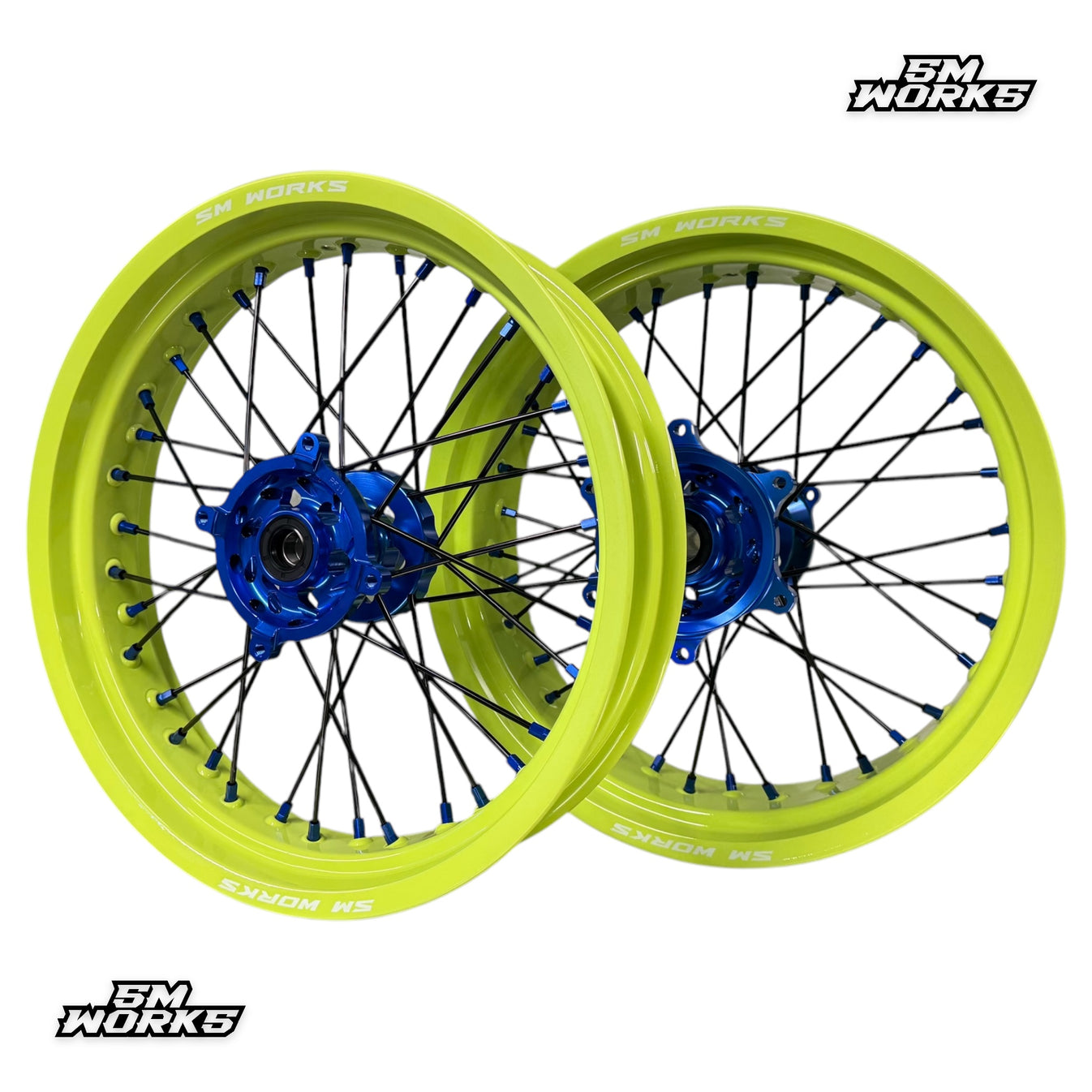

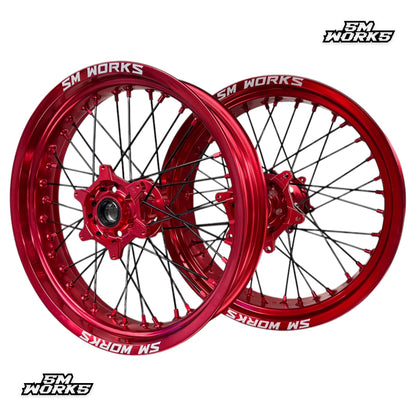

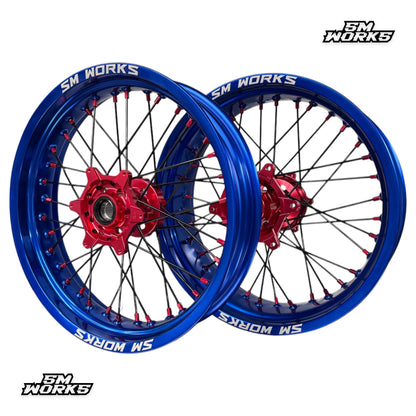

HONDA SM-BASIC RIM SET

Solid-colored rim rings, plus hubs and spoke nipples in your choice of colors – that’s your SM-BASIC setup. The 17-inch wheelset is built to order, tailored to your motorcycle model and year of manufacture.

The rim set comes without tires. In the configurator, you can optionally add tires – including mounting, heavy-duty inner tubes or tubeless, and balancing. Brake discs, brake caliper adapters, and sprockets are also available to match.

WHY SM WORKS?

✓ 100% YOUR SETUP – You configure the rim rings, hubs, spoke nipples, and sizes to match your bike and style.
✓ READY TO MOUNT – Bearings pressed in, seals installed, and spacers included to fit your model. Unpack, mount professionally, and ride.
✓ EVERYTHING FROM A SINGLE SOURCE – Get matching tires, brake discs, brake caliper adapters, and sprockets from us.
✓ REAL SUPPORT – SM WORKS is run by supermoto riders with 8 years of experience in the field. For questions about configuration or assembly, you'll be writing directly to us.
✓ TÜV FOLDER INCLUDED – You receive the technical documentation required for registration or homologation.

YOUR SM WORKS WHEELSET

• SM WORKS GLM rim rings – high-strength aluminum, in your desired color
• SM WORKS CNC hubs – precisely machined from aluminum, in your desired color
• 4 mm stainless steel spokes – reinforced for the stresses of supermoto
• Aluminum spoke nipples – in your desired color
• Bearings & seals – already installed in the hubs
• Spacers – custom-fit to your motorcycle model
• SM WORKS TÜV FOLDER

SIZES & TIRE RECOMMENDATIONS

Front: 17 x 3.50 – Tire 120/70
Rear: 17 x 4.25 – Tire 150/60
Rear: 17 x 4.50 – Tire 150/60
Rear: 17 x 5.00 – Tire 160/60

You can see which widths are available for your model directly during selection.

Weight: approx. 9.5 to 11.5 kg for the complete set excluding tires, brake discs, and sprocket – depending on rim size and hub.

FITTING YOUR BIKE

Please provide the exact model and year of manufacture. If you have modified the fork, swingarm, axles, or braking system, please consult with us regarding the configuration beforehand: support@smworks.at. Product images show example configurations – the version for your motorcycle will be delivered.

SM WORKS TÜV FOLDER

You will receive the technical documents needed for type approval or registration with your wheelset – in special cases, even for individual approval. This includes, among other things, material and strength certificates, metallurgical test reports, load capacity data, and model overviews.

The testing authority decides whether or not it will be registered. It is best to discuss your conversion with them beforehand. More on this under Registration & TÜV Folder.

ASSEMBLY

Mount the wheelset professionally and tighten all bolts and axle nuts to the torques specified by the vehicle manufacturer (OEM). After the first few kilometers, check the spoke tension and true. You can find tips under Care, Maintenance & Rim Service.

PRODUCTION & DELIVERY TIME

Your wheelset is built for you after your order is placed. The production time is up to 50 working days from receipt of payment and complete configuration. In times of unusually high demand, it may take longer – in that case, we will contact you. Tire mounting can add up to a week, and shipping time is also extra.

EXPRESS PRODUCTION: For an extra €199 per wheelset, yours will be prioritized in production and shipped within 4 calendar weeks – tire mounting included. All details under Production & Delivery Times.

CUSTOM PRODUCTION

Every wheelset is built individually for you according to your specifications regarding motorcycle, year, sizes, and colors. As a custom product made to customer specifications, it is excluded from the right of withdrawal in accordance with § 18 Abs. 1 Z 3 FAGG. Your statutory warranty remains unaffected. Legal roadworthiness depends on the vehicle, country, and registration.

BUILD YOUR BIKE. MAKE IT YOURS.
Is your build finished? Tag @SMWORKSWHEELS on Instagram – we share the best community builds on our channels.
